Miscellaneous
Besides being one of the leading
suppliers of strapping machines and shrink wrapping machines, we also offer
a wide range of other machines like continuous band sealers, pneumatic
sealers, liquid packing machines, batch coder and EM induction capper. All
the machines, systems and their respective spare parts are as per the
international quality standards. Moreover, these products are supplied in
various technical specifications and configurations. Along with the standard
specifications, we can also import & supply these machines in
specifications as defined by customers.

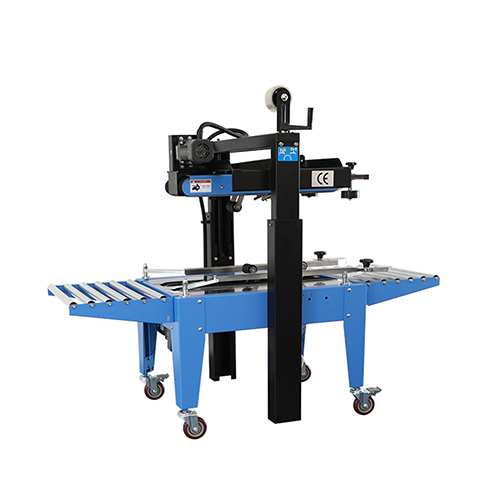

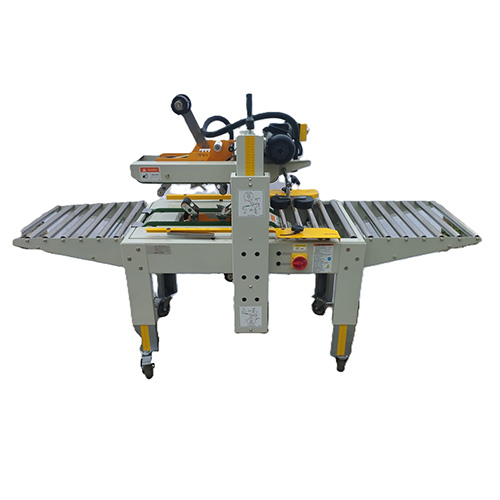

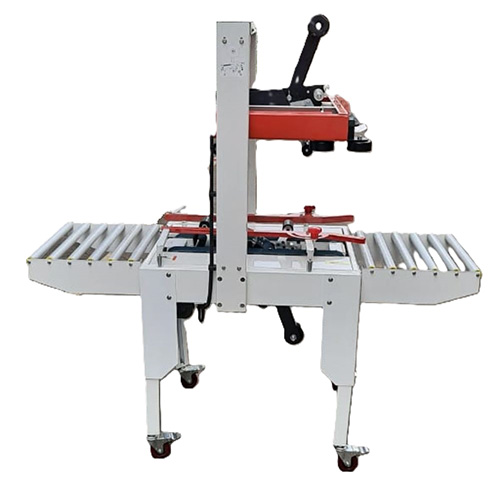

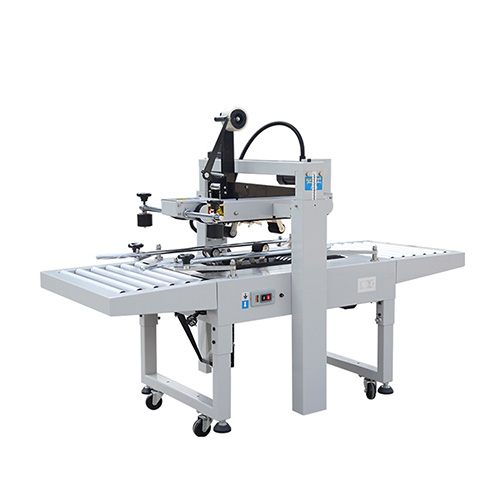

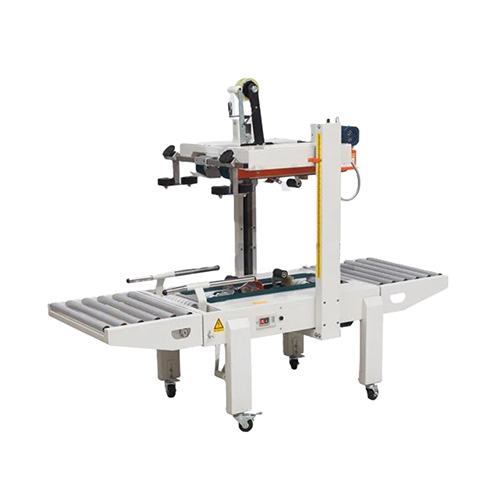

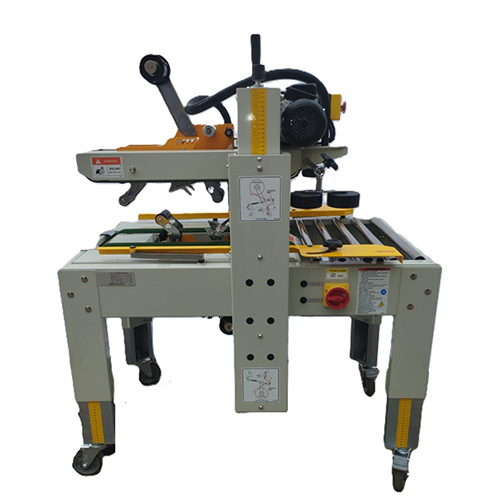

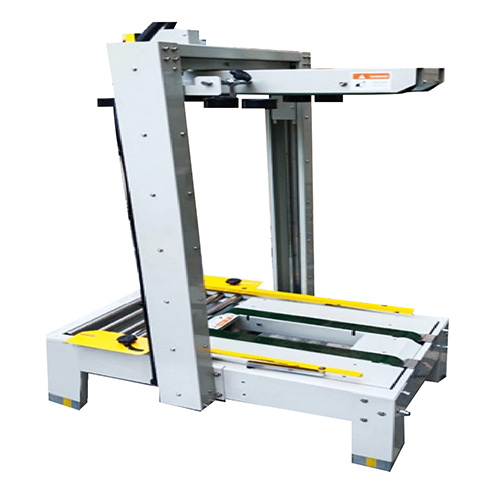

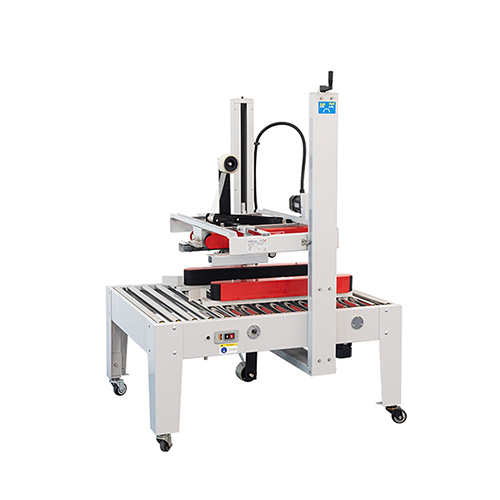

Carton Sealer (Top & Bottom Drive)
We offer carton sealers with top &
bottom drive. The machines have top & bottom tape head for high level of
functional accuracy. The tape tension, crank handle, leg height etc., are
easily adjustable. The roller working table, optional and programmable
heads, optional controller and electronic controls enhance the functional
efficiency and maneuverability of the machine. Ideal for sealing and packing
of cartons these are widely used in electrical appliance, foodstuffs,
general merchandise, medicine and in several other industries industry.
| Model |

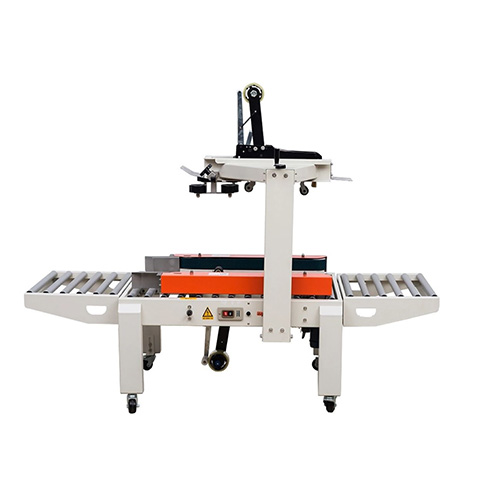

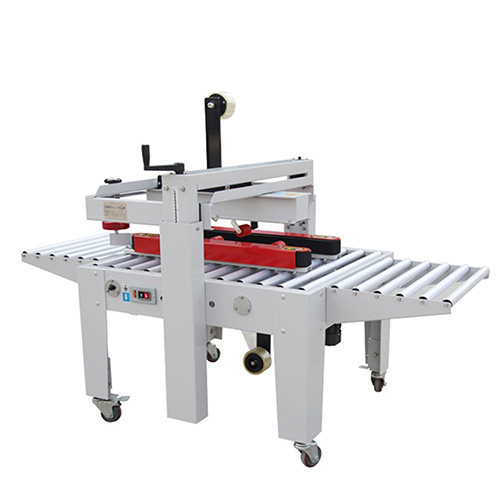

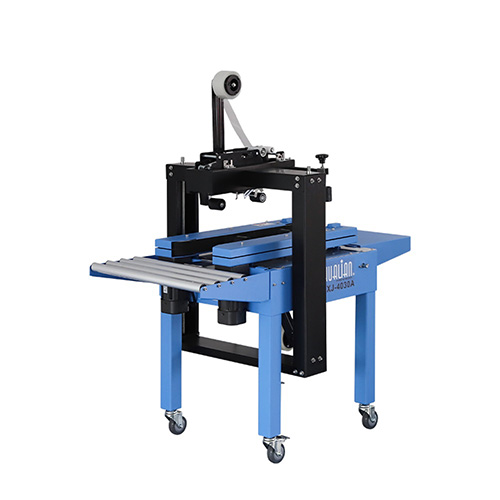

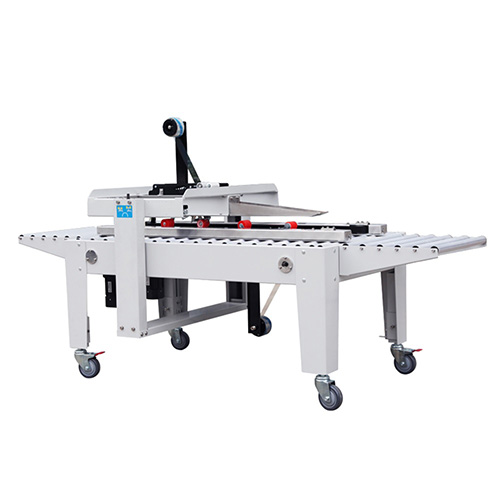

SPl02 TU (For Smaller
Cartons) |
SP102 TU (Uniform) |
SP102 TU (Heavy Duty) |

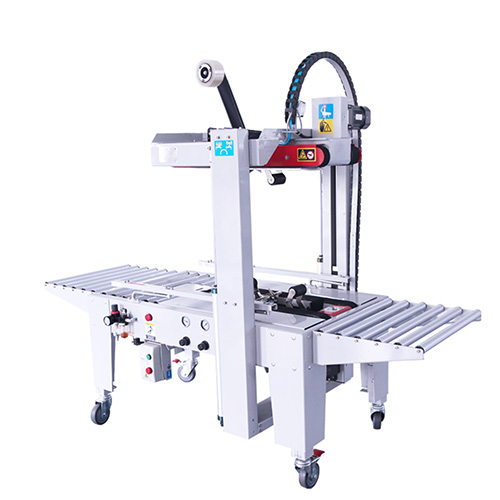

SP102 TR (Pneumatic
operated Automatic) |

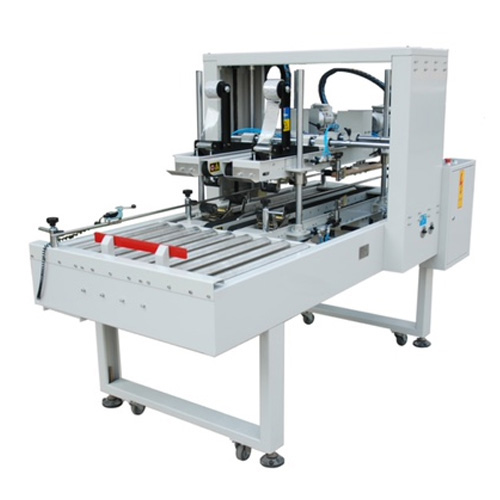

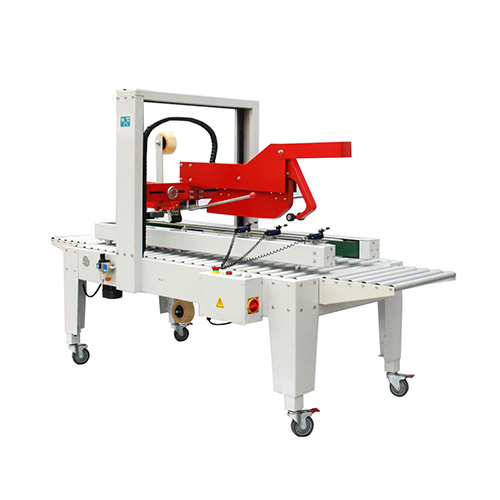

SP-102TRF (carton sealer
with auto flap closer) |
| Voltage (V/Hz) |
220/50HZ |
220 / 50 |
220/50 |
220 / 50 |
220 / 50 |
| Maximum Carton Size (LxWxH)
mm |
400 x 400mm |
500 x 600 |
700 x 800 |
500 x 500 |
500 x 500 x 600 |
| Minimum Carton Size (LxWxH)
mm |
75 x 120mm |
140 x150 |
130 x 150 |
170 x 100 |
130 x 130 x180 |
| Speed (m/min.) |
20M/MIN |
20 |
20 |
24 |
20 |
| Available Adhesive Tape |
PVC adhesive tape, ROPP |
ROPP water free adhesive tape
PVC adhesive tape |
ROPP, water free adhesive
tape PVC adhesive tape |
ROPP, water-free adhesive
tape PVC adhesive tape |
ROPP water free adhesive tape
PVC adhesive tape |
| Height of Table (mm) |
600-800 |
635-780 |
500-610 |
600-780 |
635-780 |
| Width of Adhesive Tape (mm) |
36-48 |
48-60-76 |
48-60-76 |
48-60-76 |
48-60-76 |
| Size (LxWxH) mm |
1555 x 740 x (1445-1005) |
1755 x 740 x (1445-1005) |
1730 x 1080 x (1590-1700) |
1970 x 660 x (1280-1460) |
2720 x 950 x (1200-1800) |
| Weight (kg) |
110 |
120 |
140 |
150 |
180 |
| Air Compressor |
NA |
NA |
NA |
2/3 Litres at 5 bars |
2/3 Litres at 5 bars |
|
 |
Automatic Packing Line With Auto Flap Folding & Sealing Machine
We offer innovative solutions to meet
packaging requirements of different industries. Considering capital cost
against savings made from justified usage and no wastage of packaging
materials / consumables, energy efficiency, space, uptime, reduction in
rejects, maintenance cost etc., we have developed this highly efficient
automatic packing line with auto flap folding & sealing machine.
Configured to deliver optimum performance under stringiest of work
conditions, these are most economical & reliable packing lines offered.
| Model |
SP 101 PLS |
| Voltage (V/Hz) |
AC 220/50 |
| Power(W) |
1700 |
| Max. Carton size (WxHxL) (mm) |
600x500x500 |
| Min. Carton size (WxHxL) (mm) |
180x130x130 |
| Speed (m/min) |
16 |
| Productive capacity (pcs/h) |
600 |
| Height of table (mm) |
830 |
| Available adhesive tape |
ROPP water-free adhesive tape
PVC adhesive tape |
| Available strapping belt |
Plastic strapping belt width
9-15 thickness 0.0-1.1 |
| Compressed air per carton |
2/3 Litres at 5 bars |
| Size (LxWxH) mm |
6650x1420x1565 |
| Weight (kg) |
500 |
|
 |
